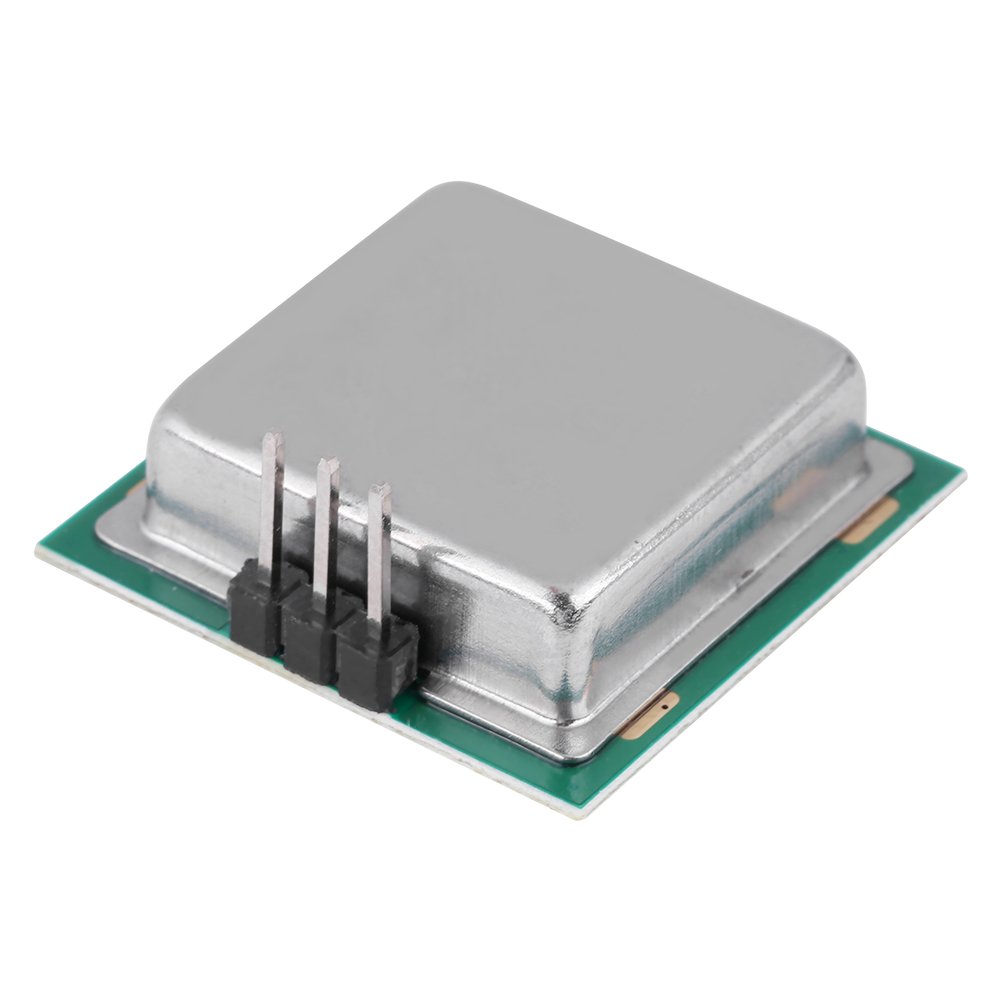

03 Body Induction Module - High Sensitivity Microwave Sensor Module (15m Range) for Business & Industrial Automation | Ideal for Security Systems, Smart Lighting & Motion Detection

Product Description

Feature: Non-contact detection, moving object detecting. This module's transmitting frequency is 24GHZ, can be widely applied in business, industries, word controlling etc. Provide various frequency range standards: -UK,-F. Advanced low consumption PHEMT oscillator. Independent transmitting and receiving route, can get the big gain. High sensibility, high flexibility, low cost, operating distance is 15m. Single channel operation. Spezifikations: Transmitting Frequency: min:24GHz typ:24.125GHz max:24.25GHz Output Power:16dbm (typ) Antenna pattern: horizontal direction: typ.80, vertical direction: typ.32 Side lobe suppression ratio: horizontal direction: typ.13dB, vertical direction: typ.13dB Operating Temperature:-20~60℃ Operating Current: typ:30MA, max:40MA Operating Voltage: typ:5.5V Pulse Width: typ:10US IF Output:-300~300MV Size: 25 x 25 x 7mm/0.98 x 0.98 x 0.27inch Weight: 5g Package Included: 1 x Microwave Body Induction Module
